CO-EYE i-Bracelet/i-Tracker two-piece GPS Tracking Unit provides precision location tracking for continuous offender monitoring. A transmitter (i-Bracelet) worn by the monitored person sends signals to the Two-Piece unit to verify their proximity to the tracking unit (i-Tracker). Location data processed and stored by the two-piece unit is transferred over the cellular network or Wi-Fi networks.

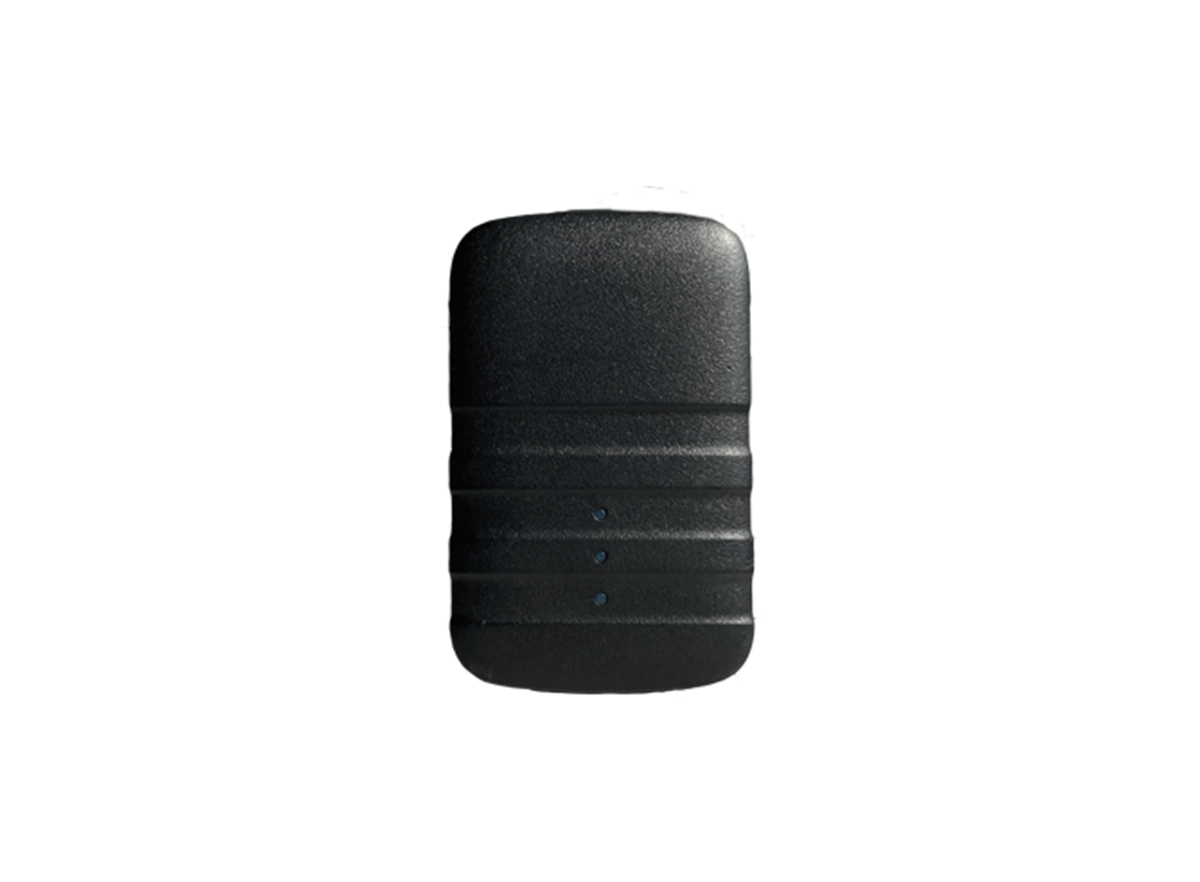

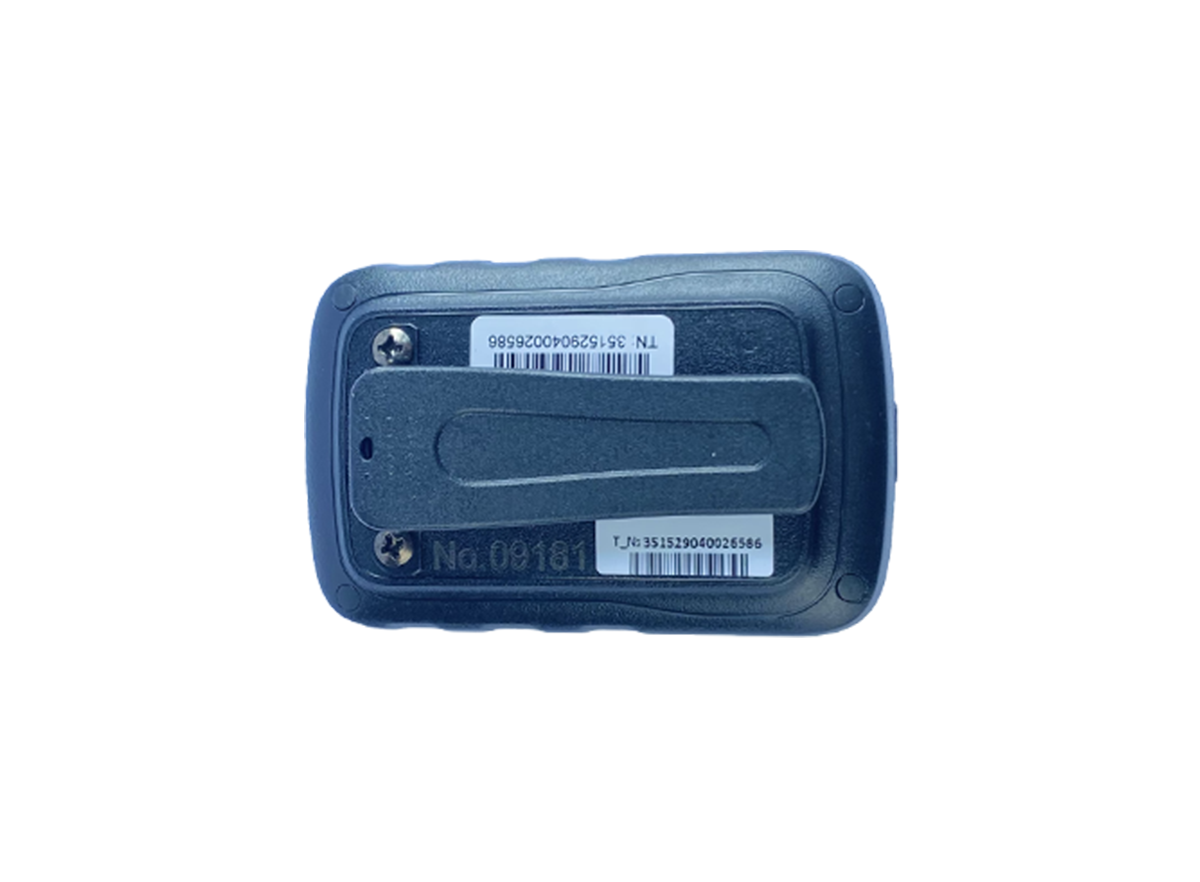

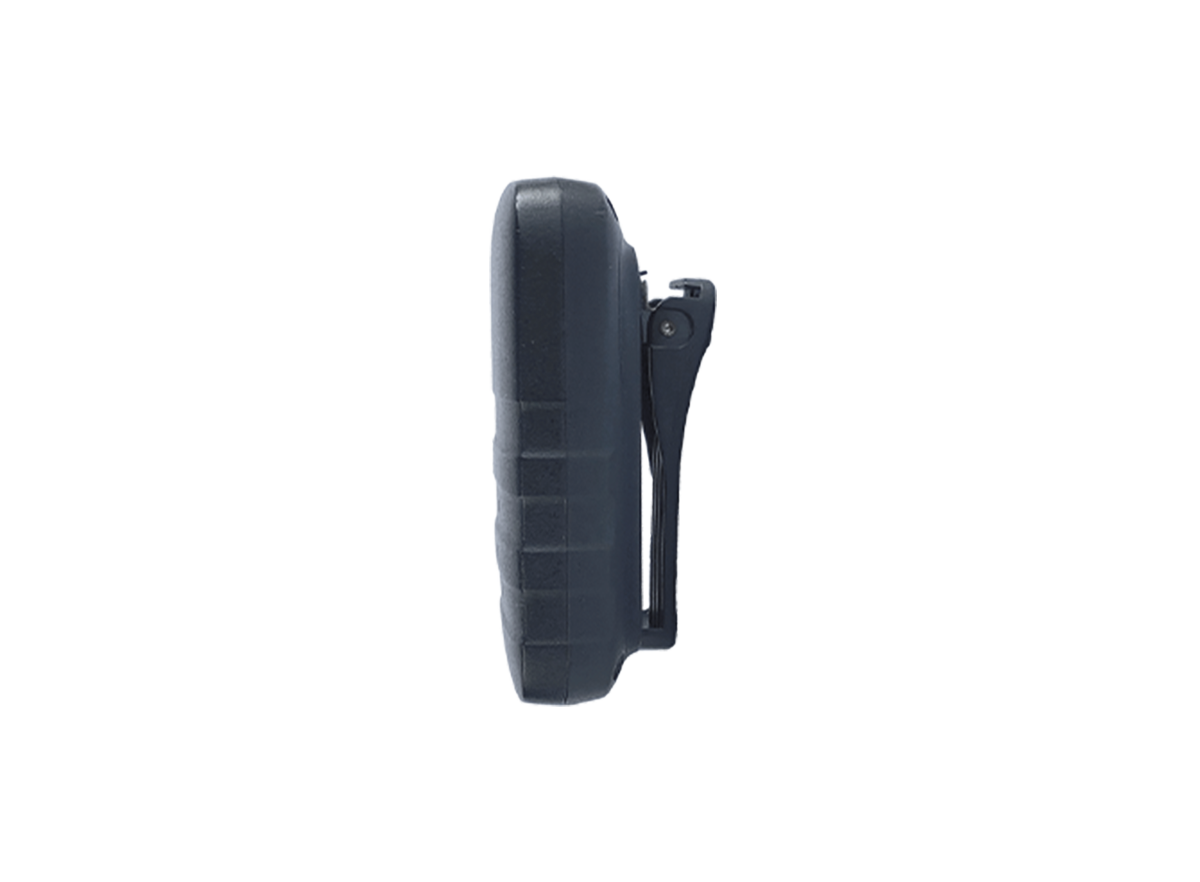

Request a QuoteThe Two-Piece GPS device (i-Tracker) incorporates a new-generation integrated GPS module providing highly accurate location capabilities. This is coupled with Wi-Fi location and triangulated cellular Location Based Service (LBS) as backup location methods.
RF i-Bracelet device is the smallest and lightweight professional ankle electronic bracelet, equipped with multiple high-security anti-removal protection mechanisms such as optics, electronics, machinery, and physics. It also provides IP68 waterproof protection.
Quick and simple installation and activation procedure using custom tools for a secure fit every time.
Multiple detection mechanisms on the Two-Piece GPS unit and the participant's body-worn transmitter provide electronic and physical evidence of tamper attempts.
Data transfer to the monitoring center supports HTTPS connection, or proprietary protocols using AES encryption for authentication and validation.
Leveraging multiple satellites systems (supported by GPS, GLONASS, Galileo, and BeiDou), Wi-Fi tracking, and Tower Based Tracking is meticulously designed to provide a location in the most challenging locations.
Scheduling and zone configuration options to meet the monitoring needs of each agency and monitored individual. Customizable local indication (visual, audible and vibration), call intervals and GPS sampling rates.
The i-Tracker incorporates cellular and Wi-Fi communication – allowing selection of the preferred communication platform and providing redundancy when the primary channel is unavailable.
| Parameter | CO-EYE BLE i-Bracelet | CO-EYE RF i-Bracelet |
|---|---|---|
| Size (mm) | 65*22*10mm | 65*22*10mm |
| Weight | 0.6oz or 17g | 0.65oz or 18g |
| Waterproof | IP68 Certified | IP68 Certified |
| Operating Temperature | -20 to +60 °C | -20 to +60 °C |
| Location On Body | Ankle or wrist | Ankle or wrist |
| Frequency | 2.4GHz | 433MHz |
| Geo-locate Type | In-App GPS/LBS/WiFi | Paired device GPS/LBS/WiFi |
| Work Mode | Normal and storage mode, automatic switching | Normal and storage mode, automatic switching |
| Effective Range | 10m indoor, 30m outdoor | 20m indoor, 100m outdoor |
| Paired Device | CO-EYE AMClient App, 3-party App in iOS or Android | CO-EYE i-Tracker, CO-EYE House Station |
| Battery Capacity | 280mAh, 2*CR1632 | 280mAh, 2*CR1632 |
| Battery Life | 2 years, 5 years in storage | 1 year, 2 years in storage |
| Battery Level Report | Supported, no charging but replacement | N/A, no charging but replacement |
| Anti-tamper | Fiber optic strap | Fiber optic strap |
| On-board Sensors | Motion | Motion |
| On-board Storage | 128K | 64K |
| CPU | Main processor: ARM M0 | Main processor: RISC |
| Security | AES128 | AES128 |
| Certifications | FCC / CNAS / MA | GA / CNAS / MA |
| Material Safety | CNAS / MA | CNAS / MA |
| Health Safety | SAR | SAR |
| Battery Safety | CE/IEC 60086-4 | CE/IEC 60086-4 |
| Strap Type | Regular TPU strap, Multiple sizes | Regular TPU strap, Multiple sizes |
| Usage | Disposable or rapid reuse | Disposable or rapid reuse |
| Install or Removal | < 3 seconds | < 3 seconds |
| 3-party Smartphone App | Supported | N/A |
| Parameter | CO-EYE i-Tracker | CO-EYE HouseStation |
|---|---|---|
| Size / Weight | 85*55*22mm, 105g | 225*173*55mm, 750g |
| Operating Temperature | -20 to +60 °C | -20 to +60 °C |
| Bracelet Monitor | RF and BLE i-Bracelet | RF and BLE i-Bracelet |
| Cellular Network | GSM/GPRS/EDGE/WCDMA, Micro SIM | GSM/GPRS/EDGE/WCDMA, Micro SIM + dual standard SIM |
| WiFi Network | 2.4G WiFi communication | 2.4G WiFi communication |
| Geo-locate Type | GPS/BeiDou/Galileo/GLONASS/LBS/WiFi | GPS/BeiDou/Galileo/GLONASS/LBS/WiFi |
| GPS Accuracy | < 5m CEP | < 5m CEP |
| BLE Connected Mode | Optional CO-EYE ONE-AC | Optional CO-EYE ONE-AC |
| Battery Life (5 min) | 2 days | 2 days |
| Battery Capacity | 2300mAh | 2300mAh |
| Recharge Time | 2.5 hours, NTC enabled | 2.5 hours, NTC enabled |
| Charging | 2mm Jack or mobile power bank | USB-C or mobile power bank |
| On-board Wireless | 433M RFID, Bluetooth, WiFi | 433M RFID, Bluetooth, WiFi |
| On-board Sensors | Barometer, accelerometer | Barometer, accelerometer |
| On-board Storage | 4G, 1-year data storage | 4G, 1-year data storage |
| CPU | 4-Core ARM Cortex A7 | 4-Core ARM Cortex A7 |
| Security | HTTPS/SSL, AES128/256, SM4/SM3/SM2 | HTTPS/SSL, AES128/256, SM4/SM3/SM2 |
| 433M Range | 20m indoor, 100m outdoor | 50m indoor, 200m outdoor |
| Phone Functions | N/A | Full functions (independent dual-SIM) |
| Remote Voice Monitoring | Optional | Optional |
| Floor Monitoring | Supported (internal barometer) | Supported (internal barometer) |
